Descripción del Producto

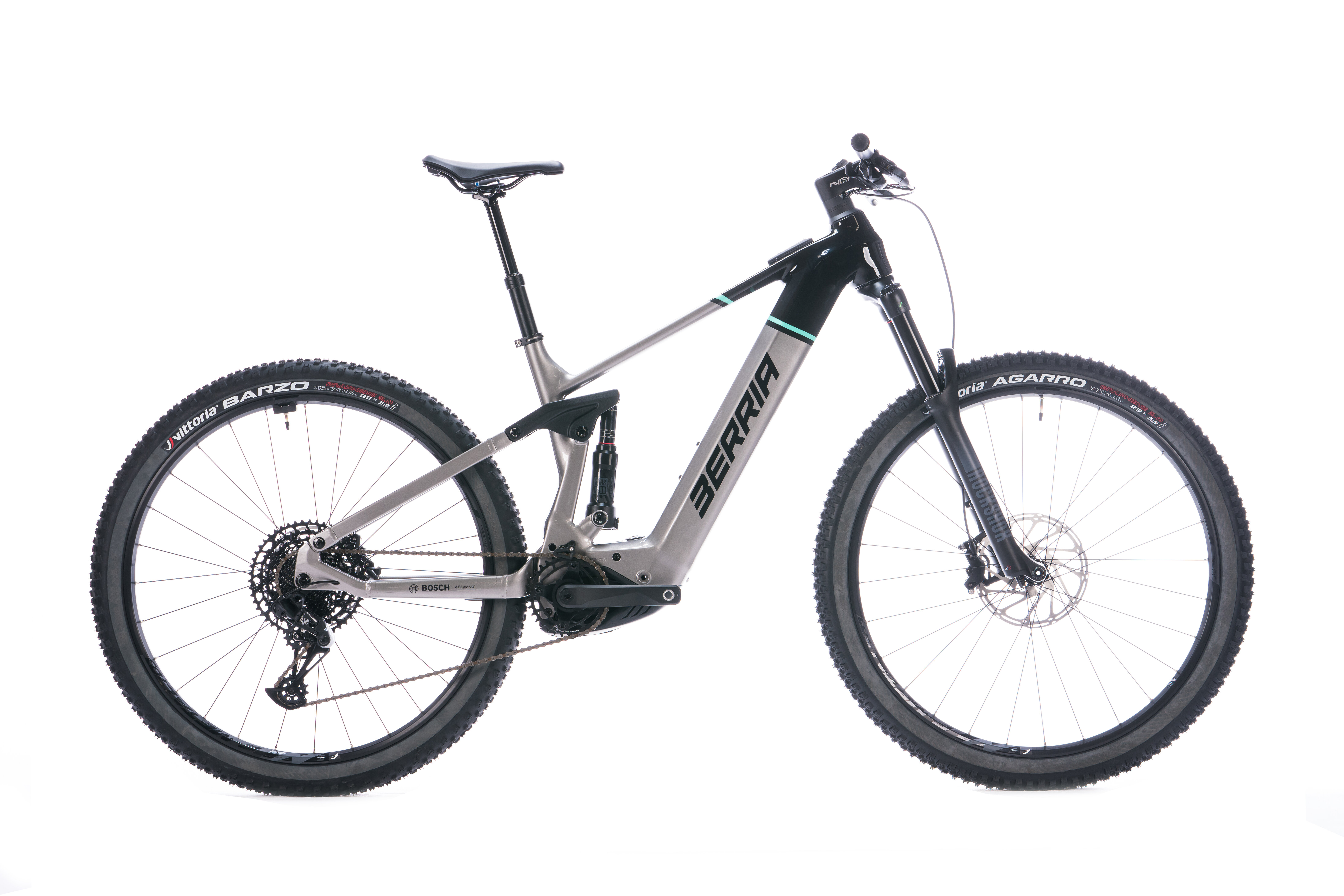

BERRIA CAYMAN
CAYMAN, Geometría ajustable en posición Sport o Touring por sistema de Flip Chip reversible, Cinemática deportiva E-mtb 148mm, cuadro en Aluminio 3BS 6061 Hydroformado con soldaduras pulidas y partes especificas construidas por fundición de alta presión con la tecnología PCP (Precisión Casting Process), sistema de cableado totalmente integrado ICS2, dirección integrada OH2S 1-1.8″ – 1-1.8″ , freno trasero de tipo PMS (Post mounted), neumáticos recomendados 29×2.60 , eje trasero de tipo Boost Thru axle Boost 12x148mm, patilla de cambio de tipo UDH, peso 3300g.
Rock Shox35 GOLD RL, Motion Control, 15x110mm Maxle Stealth, Tapered steerer, Rake 44mm, 35mm straight wall STEEL Fast Black, weight 2377g, 150mm travel
Triple Butted System
Avanforce AF3 TRAIL, Aluminum 6061, 31,8mm, wide 780mm, weight 340g
TRANZX JD-YSPJL Aluminum 7075-T6, 0° offset, 31,6 x 421mm, weight 590g, 125mm travel
ESSAX ERA , Steel rod, wide 145mm, length 250mm, weight 280g
UDH Universal Derailleur Hanger
Rock Shox Deluxe SELECT R BERRIA MAKO HYBRID Trail Custom, Debon Air, Trunion 205X57,5mm, 148mm travel
BOSCH PERFORMANCE LINE CX Gen 4 Smart System, Nominal performances 250W – 85Nm weight 2900g
BOSCH INTEGRATED POWER TUBE 750Wh 36V 20,83Ah, 4300g
BOSCH SYSTEM CONTROLLER Led Colour + MINI REMOTE Bluetooth, App eBike Flow
Bosch charger 220-240V 3A Europe
GRUPO CAMBIO
SRAM NX Eagle, 12 Speed, weight 339g
SRAM SX Eagle Trigger 12V, X-actuation, weight 133g
SRAM XG1210, 11-50T, weight 730g
SRAM SX Eagle CN-EAGL-SX-A1
FSA CK-220/IF MTB
SRAM DB8, 4 pistons, mineral oil, Disc 200/F 180/R
RUEDAS
FRONT Vittoria Agarro 2.6″X 29″, Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 970g / REAR Vittoria Barzo 2.6″X 29″, Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 820g
FULCRUM E-METAL 700 , Alloy, TLR, 30mm internal width, max. weight 230kg, weight 2470g
| S | M | L | ||
| 1 | Tubo de asiento | 410 | 440 | 470 |
| 2 | Tubo horizontal | 571 / 573mm | 601 / 603mm | 633 / 634mm |
| 3 | Tubo frontal | 115 | 115 | 120 |
| 4 | Vaina | 448/450 | 448/450 | 448/450 |
| 5 | Caída eje pedalier | 30/36 | 30/36 | 30/36 |
| 6 | Distancia entre ejes | 1217 / 1219mm | 1245 / 1246mm | 1277 / 1278mm |
| 7 | Ángulo frontal | 65,7/65,3 | 65,7/65,3 | 65,7/65,3 |
| 8 | Ángulo del tubo de sillín | 78,2/77,8 | 78,2/77,8 | 77,8/77,4 |
| 9 | Reach | 448 / 444mm | 481 / 477 mm | 511 / 506mm |
| 10 | Stack | 631 / 635mm | 631 / 635mm | 635 / 639mm |
| S | M | L | |
| Altura (cm) | 165-176 CM | 176-185 CM | 185-192 CM |
